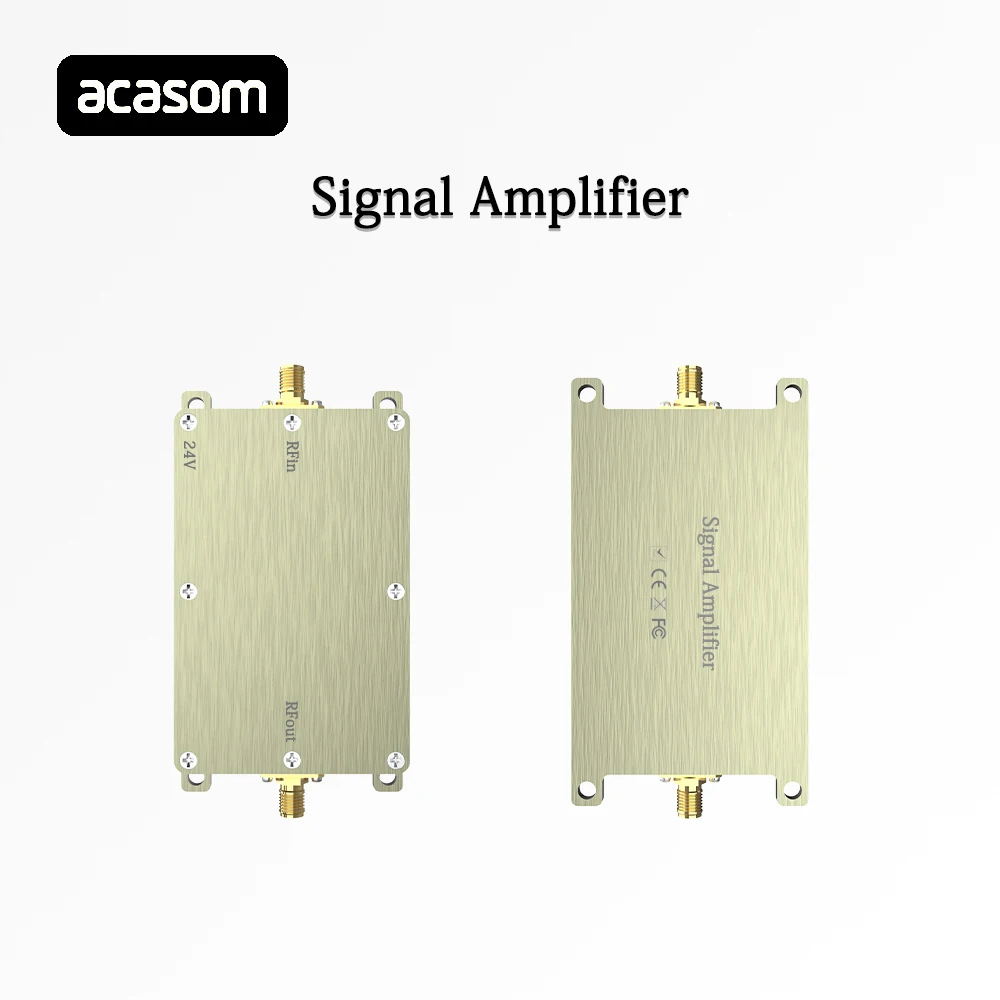

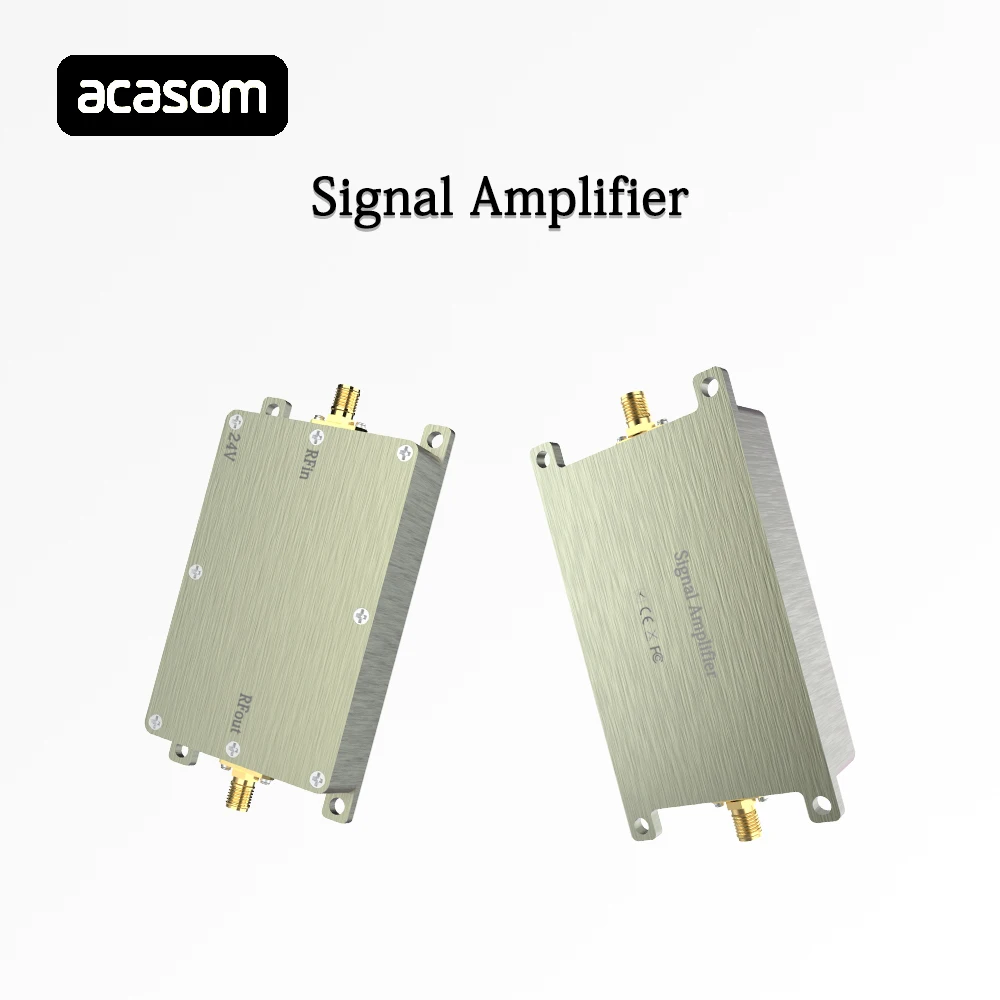

1.4GHz 50W RF High Power Amplifiers wireless Signal Extender Sweep Signal Source For Drone GPS

ACASOM  1.6GHz Unidirectional Amplifier FOR WiFi/ DRONE

Only the Tansmitting Channel (TX), NO RX

Number	Items	Specifications
1	Frequency Range	1420-1470MHz
2	Operating Voltage	20-24V（customizable28-32V）
3	Gain(S21)	37dB(customizable 25-37dB)
4	Input Return Loss(S11)	-15dB
5	Flatness	±0.5dB
6	Output Power	47dBm
7	Current	4.3A @24V, 47dBm
8	Efficiency	45%@46dBm
9	LED State	Red
10	Operating Temperature	-30℃～85℃
11	Storage Temperature	-40℃～150℃
12	Operating Humidity	＜95%RH

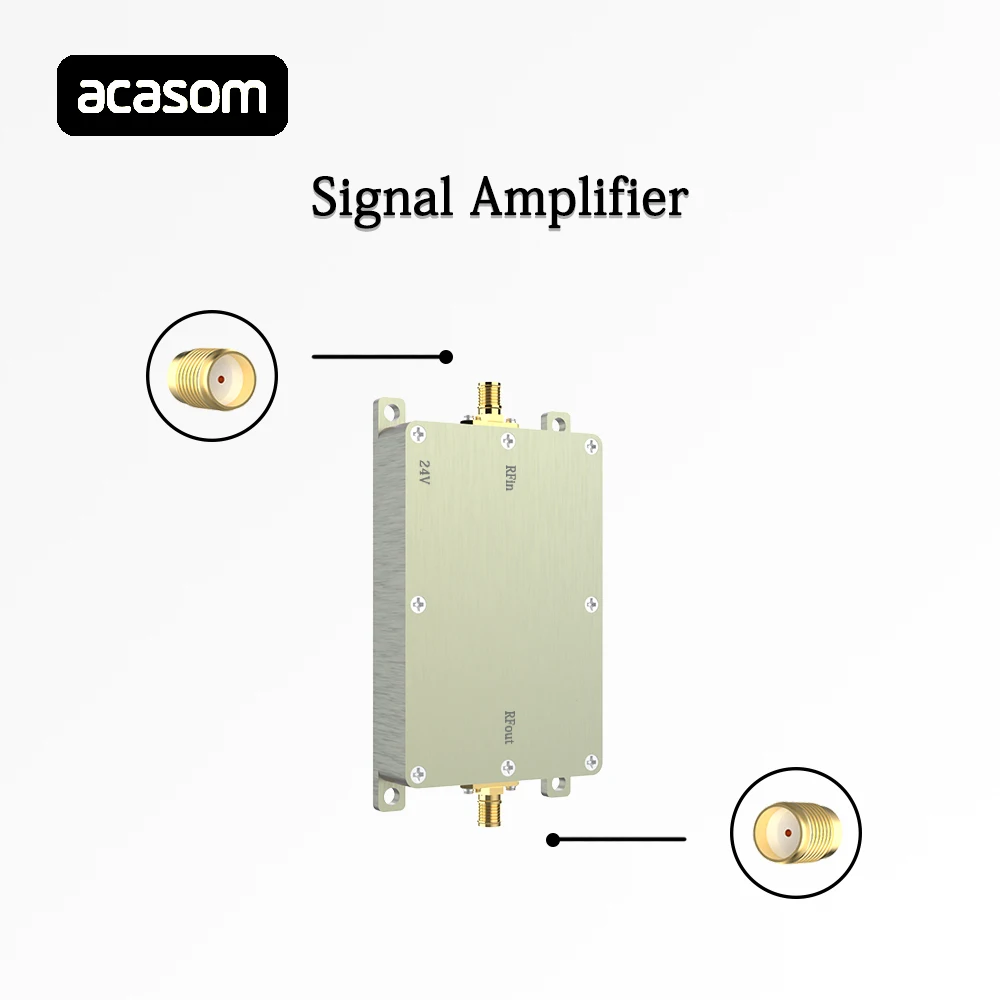

13	RF Connector	Input：SMA-Female; Output：SMA-Female
14	Power Socket	5.5*2.0mm DC( default ) or 15cm red/black wire
15	Shell Material	Aluminum

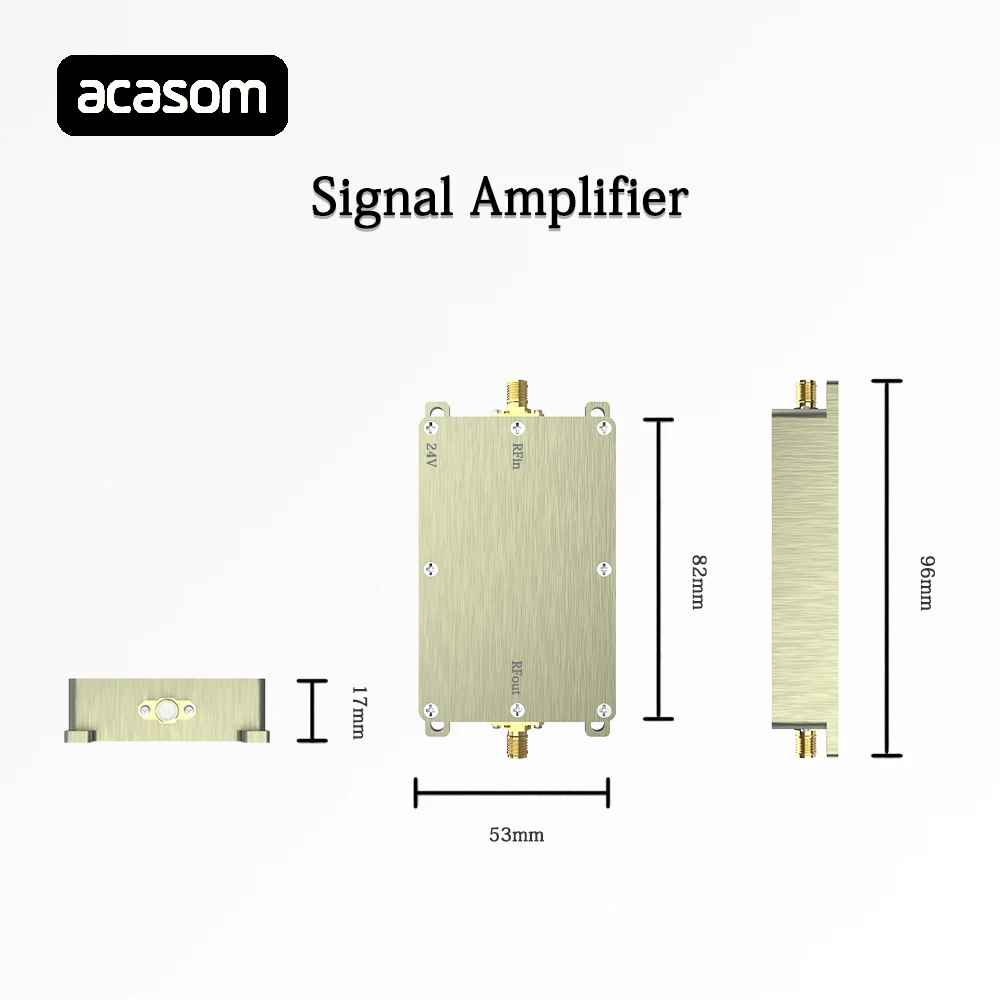

16	Shell Size	96*53*17mm
17	Net Weight	0.15Kg

1  24V /5A power supply.

2  Heat dissipation is recommended, such as adding heat sink or radiator fan.

3  Antenna should be screwed first, then plug the power adapter, finally connect the device.

4  The output could reach 47dBm, when input power is10dBm or 11dBm (default gain is 37dB).

1* Power Amplifier
