DOKIO 18V 100W Flexible Solar Panels Waterproof Portable Solar Panels Charger 12V Solar Cell Sets For Home/Car/Camping/Boat

Sale

DOKIO 18V 100W Flexible Solar Panels Waterproof Portable Solar Panels Charger 12V Solar Cell Sets For Home/Car/Camping/Boat

$88.88$535.13

SKU: 3256804632464387 Category:
Clear

Description

Dokio 18V Flexible Solar Panels 100W China Waterproof Solar Panels 12V Charger Solar Cell Sets For Home/Car/Camping/Boat panel

Model:DFSP-100M
Material:Monocrystalline Silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage (Vmp):18V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc):22.50V
Short-Circuit Current (Isc):5.81A
Nominal Operating Cell Temp.(NOCT):-45to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Net Weight:1.05kg
Dimension:975*565mm
Package Weight:3kg
Package Dimension:980*580*35mm
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5         IRRADIANCE=1000W/m2        Temp.=25℃

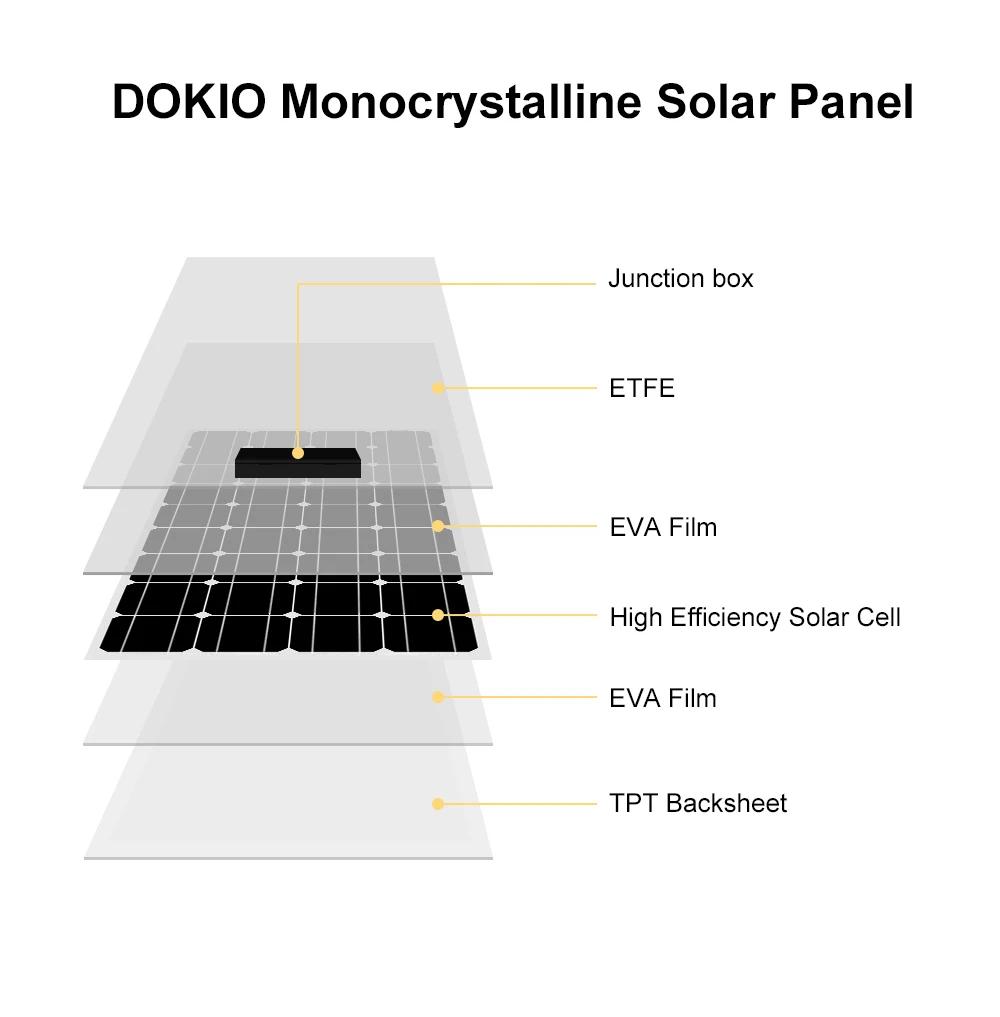

Material structure:
1 floor: ETFE
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet

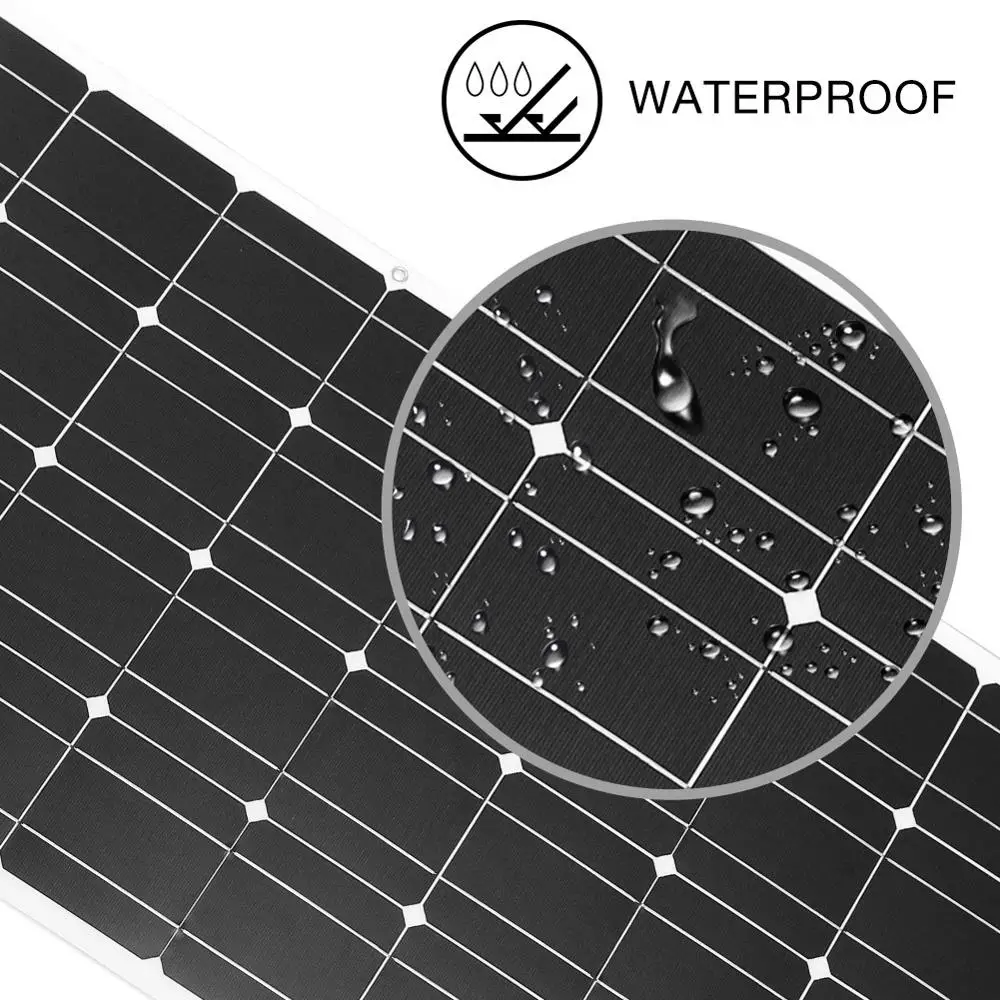

waterproof level:IP67(Junction Box)

(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy,thank you)


Dear customer. All of our products have been upgraded.

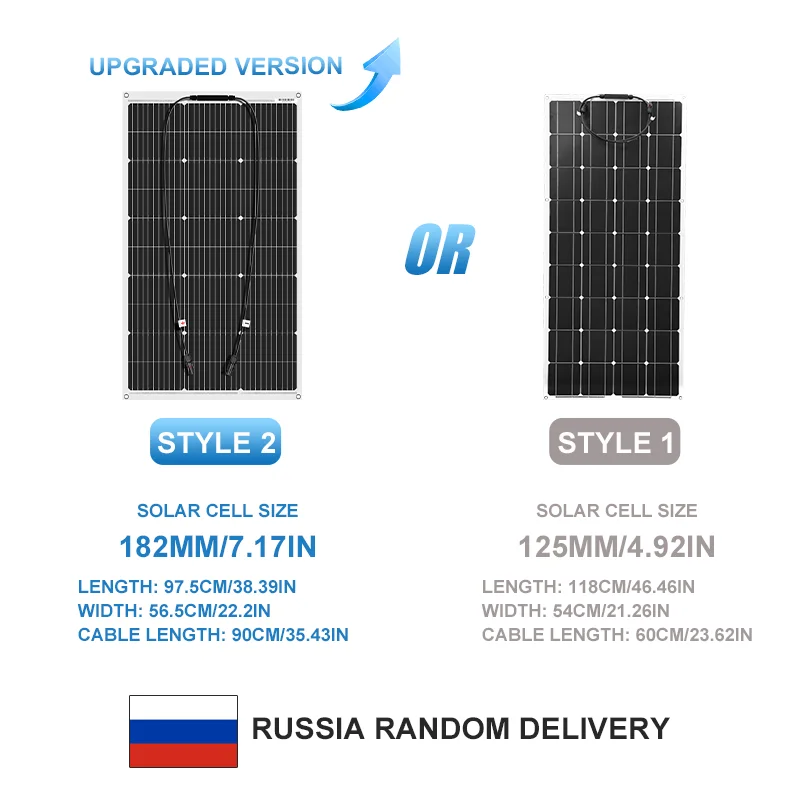

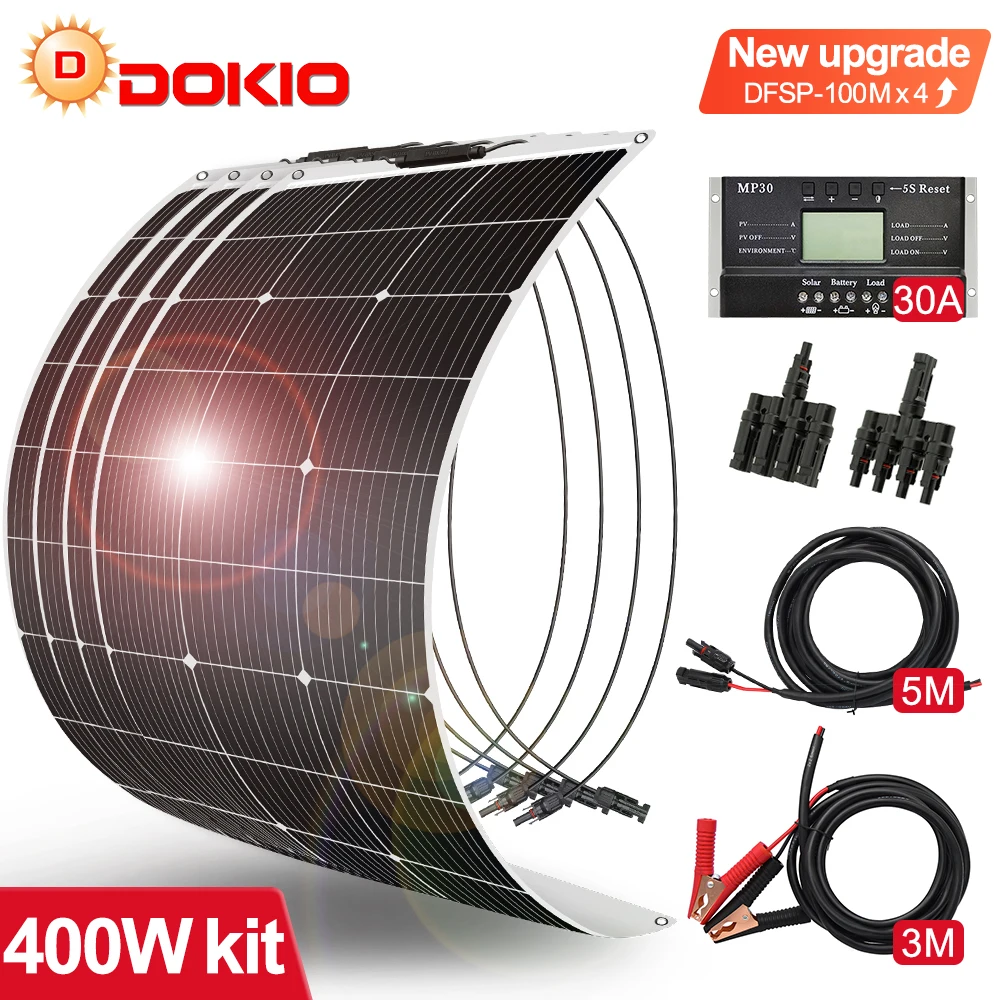

The DFSP-100MX4 model in the German warehouse has been replaced with the latest version of solar panels.
The size and packaging have been changed, and the MC4 cable has been extended to 90cm
The specific pictures are as follows:

PS: Other models are still old versions.


Additional information

is_customized

Yes

Max. Power

100W

Size

97.5*56.5.cm/1190x540x25MM

Material

Monocrystalline Silicon

Model Number

DFSP-100M

Nominal Capacity

None

Foldable Solar Panel

No

Flexible Solar Panel

Yes

Number of Panels

1

Type

Solar Panel

Brand Name

DOKIO

Origin

Mainland China

Certification

CE

Maximum Power

100W

Maximum System Voltage

1000V DC (UL)

Optimum Operating Voltage (Vmp)

18.00V

Open-Circuit Voltage (Voc)

22.50V

Optimum Operating Current (Imp)

5.56A

Short-Circuit Current (Isc)

5.81A

Weight

1.05kg

Dimensions

975*565mm
